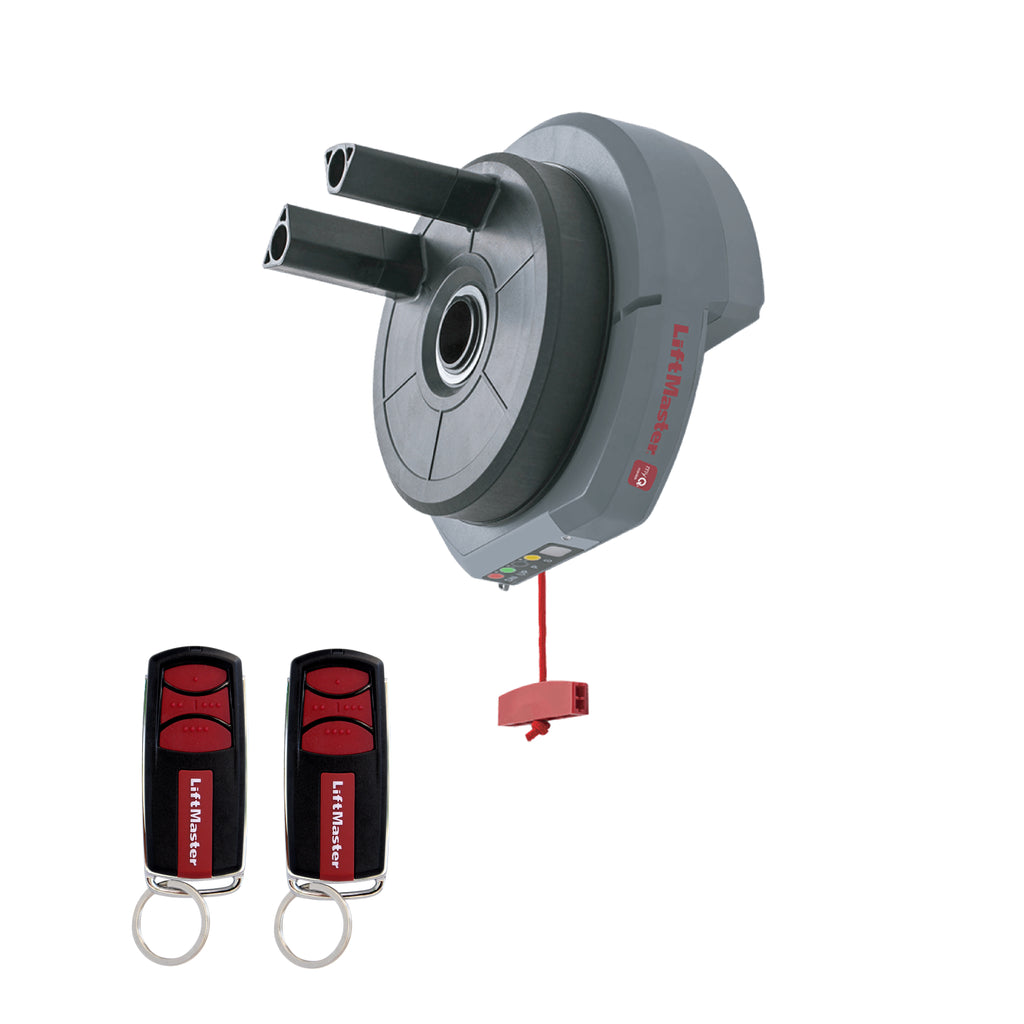

LiftMaster LM555EVGBSA Rolling Door Motor
The LiftMaster LM555EVGBSA Rolling Door Motor is a compact and reliable automation solution designed specifically for spring-balanced continuous sheet rolling shutter doors. With a powerful 24V DC motor, slimline construction, and maximum peak pulling force of 500N, it provides smooth and dependable operation for residential and commercial rolling doors.
The motor is suitable for doors measuring up to 3 metres high and 5 metres wide, with a maximum door area of 15m² and maximum door weight of 120kg.
Technical Specifications
- Model: LM555EVGBSA
- Brand: LiftMaster
- Input Power Supply: 1 Phase, 230V, 50Hz AC
- Motor: 24V DC
- Maximum Peak Pulling Force: 500N
- IP Rating: IP34
- Minimum Side Room Required: 40mm
- Maximum Door Height: 3 metres
- Maximum Door Width: 5 metres
- Maximum Door Area: 15m²
- Maximum Door Weight: 120kg
- Door Type: Spring-balanced continuous sheet rolling shutter doors.
Key Features
- Powerful 24V DC motor
- Maximum peak pulling force of 500N
- Suitable for doors weighing up to 120kg
- Designed for spring-balanced continuous sheet roller doors
- Smooth and convenient automatic door operation
- Suitable for residential and commercial applications
LiftMaster Rolling Door Motor Supplier in UAE
Bright Way Automatic Doors LLC supplies the LiftMaster LM555EVGBSA Rolling Door Motor in Dubai, Abu Dhabi, Sharjah and across the UAE. Professional installation, replacement, repair, and maintenance services are also available.
If you are looking for a LiftMaster rolling shutter motor, rolling door opener, roller garage door motor, or automatic rolling door motor in the UAE, the LM555EVGBSA offers a compact and reliable solution for compatible spring-balanced rolling shutter doors.
